    8000kN Hydraulic Gantry Shear With 2000mm Blade For Steel Processing

    Ask Lasest Price
    Brand Name : WANSHIDA
    Model Number : Q43L-8000
    Certification : CE and ISO9001
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 10 sets/month
    Delivery Time : 50days
    • Product Details
    • Company Profile

    8000kN Hydraulic Gantry Shear With 2000mm Blade For Steel Processing

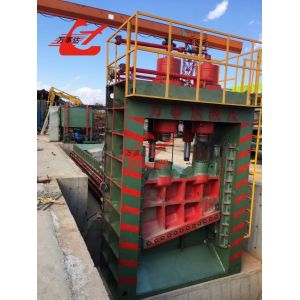

    8000kN Hydraulic Gantry Shear with 2000mm Blade for Steel Processing

    The Hydraulic Gantry Shear is a heavy-duty scrap processing machine designed for large-scale recycling centers, steel mills, ports, and demolition sites. With a massive cutting force of 8000 kN and a 270 kW high-power motor, this machine ensures efficient, precise, and continuous cutting of oversized scrap steel, structural steel, and industrial waste. Its robust structure, combined with PLC automatic control and an air cooling hydraulic system, makes it a reliable choice for 24/7 operations.

    Application

    The gantry shear is widely applied in:

    • Scrap steel recycling yards

    • Steel plants & smelting facilities

    • Construction and demolition waste processing

    • Ports and large logistics recycling hubs
      It is ideal for cutting large steel beams, plates, round bars, square bars, and bulky scrap, making scrap processing and furnace feeding more efficient.

    Specifications
    ModelQ43L-8000L Gantry Shear
    Cutting Force (kN)8000
    Loading Room Size (mm)8000 × 1950 × 900
    Blade Length (mm)2000
    Hydraulic Pressure (MPa)25
    Cooling SystemAir Cooling
    Cutting Speed (times/min)2–3
    Motor Power (kW)270
    OperationPLC Automatic Control
    Machine Weight (kg)92,000
    Advantages
    • High Cutting Force: 8000kN shear force for heavy-duty scrap.

    • Large Feeding Chamber: 8m loading room to handle oversized materials.

    • Efficient Power System: 270kW motor with air cooling for stable performance.

    • PLC Automation: Easy to operate with safety features and overload protection.

    • Durable Design: Built for continuous heavy-duty industrial use.

    FAQ

    Q1: What materials can the gantry shear cut?
    It can cut steel beams, plates, round and square bars, and bulky scrap metal up to large dimensions.

    Q2: How does the cooling system work?
    The machine is equipped with an air cooling hydraulic system, ensuring stable operation during long shifts.

    Q3: Is the machine easy to operate?
    Yes, the PLC control system allows semi-automatic or automatic operation with high safety.

    After-Sales Service
    • One-year warranty with lifelong maintenance support.

    • Spare parts available and quick technical response.

    • On-site installation and training can be provided if required.

    Core Keywords integrated for SEO: Gantry Shear, Hydraulic Gantry Shear, Scrap Metal Shear, Heavy Duty Scrap Shear, Metal Recycling Equipment.
